GD-LPC-P3
GOLD

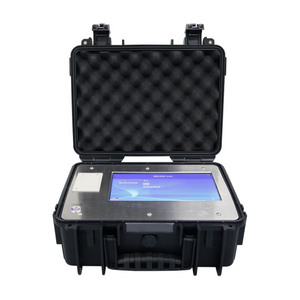

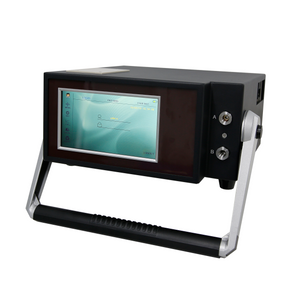

NAS1638 ISO4406 Automatic Liquid Particle Size Counter for Detecting Particle in Oil
1. Technical Indicator
1）Measurement Range：0.8um～100um
2）Number of channel：64channel，size can be set free（in the range of selected curve）
3）Sampling volume：≥0.2ml
4）Sampling speed：5～80ml/min
5）Resolution：<10%
6）Coincidence deviation limit：10000 particles /ml
7）Pressure Range：Low Pressure：0～6bar
High Pressure：3～420bar
8）Data Storage：1000 Group
9）Viscosity detection range：0～50cSt（optional）
10）Water activity：0～1aw（optional）
11）Water content：0～360ppm（optional）
12）Power Supply：AC220V±10%；50Hz；≤75W
13）Battery Capcity：5200mAh
14）Battery Continuous working time：6～8Hrs
15）Data output：Built-in printer and R232 interface
16) Application: Can be widely used in aerospace, aviation, electric power, petroleum, chemical industry, traffic, port, metallurgy, machinery, automobile manufacturing and other fields in the hydraulic oil, lubricating oil, transformer oil, insulating oil, turbine oil, gear oil, engine oil, aviation kerosene, water-based hydraulic fluid solid particle pollution tests such as oil, And the detection of insoluble particles in organic liquid and polymer solution.
17) Method: light resistance (shading method)
2. Standard:
Standard tests include NAS1638 standard, GJB420A standard, GJB420B standard, ISO4406 standard, SAE4059DPC standard, SAE4059CPC standard, GB/T14039, GOST17216 standard, QC/T29104 standard, JB/T9737 standard, DL/ T432 standard, SAE749D standard and HH005-2018 standard.
NAS1638（Particles/100ml）
ISO 4406
3. Detail Images:
