GD-PF100
GOLD

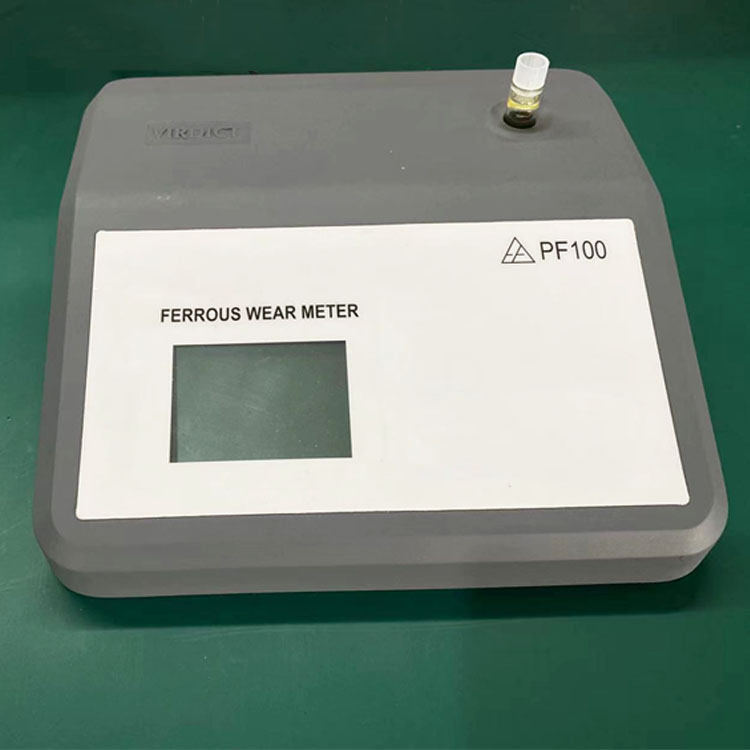

Portable Ferrous Wear Meter (FWM) Onsite Rapid Analysis
Function:
1. The iron instrument is mainly used to detect the metal particles in the oil sample extracted from the cylinder friction oil.
2. It is consistent with ASTM D8120 standard test method for iron chip quantification.
3. PF100 provides a simple and easy to use platform.
4. This instrument is a high-precision and reliable instrument independently developed.
5. The instrument can easily test and analyze oil samples, for example, complete laboratory analysis can be carried out on board or in remote areas.
6. PF100 is a precision magnetometer suitable for field application.
Analysis method:
Put the 5ML test tube with sample directly on the sample hole of the instrument, and its metal content (PPM) will be displayed on the screen in less than 2 seconds. Use in cooperation with the c old corrosion test kit to obtain a vessel cylinder oil total iron measuring iron wear gauge.
Parameters:
Measuring range PPM: 0-2500PPM
Sample test method: magnetic method
Operating temperature range:15°C-40°C
Display resolution:5PPM
Repeatability:+/-10PPM (0-1000PPM),
+1-20PPM(>1001PPM)
Sample bottle: standard 5ML test tube
Weight:1.1 kg
Test time:<3 seconds for each sample
Power supply: 24VDC power supply includes UK, EU
Portable Ferrous Wear Meter (FWM) Onsite Rapid Analysis
Function:
1. The iron instrument is mainly used to detect the metal particles in the oil sample extracted from the cylinder friction oil.
2. It is consistent with ASTM D8120 standard test method for iron chip quantification.
3. PF100 provides a simple and easy to use platform.
4. This instrument is a high-precision and reliable instrument independently developed.
5. The instrument can easily test and analyze oil samples, for example, complete laboratory analysis can be carried out on board or in remote areas.
6. PF100 is a precision magnetometer suitable for field application.
Analysis method:
Put the 5ML test tube with sample directly on the sample hole of the instrument, and its metal content (PPM) will be displayed on the screen in less than 2 seconds. Use in cooperation with the c old corrosion test kit to obtain a vessel cylinder oil total iron measuring iron wear gauge.
Parameters:
Measuring range PPM: 0-2500PPM
Sample test method: magnetic method
Operating temperature range:15°C-40°C
Display resolution:5PPM
Repeatability:+/-10PPM (0-1000PPM),
+1-20PPM(>1001PPM)
Sample bottle: standard 5ML test tube
Weight:1.1 kg
Test time:<3 seconds for each sample
Power supply: 24VDC power supply includes UK, EU
